ADVENT PLT ADE-200KIT Test Results

The Test Results from a Notified Body: ADVENT PLT ADE-200KIT

This page is dedicated to Advent who kindly decided to also make PLT equipment incapable of meeting the European Standards for Conducted Emissions.

It should be noted that at the time of writing, these are the 'Winners' for the highest level of pollution so far observed from a PLT device which has been tested to CISPR levels. Congratulations Advent!


Test Number   :07
Customer      :PLT

Details of Equipment under test

SYSTEM UNIT  :  ADVENT PLT ADE-200KIT  SN 744009205

Mfg          :   NEUTRAL
Test Limit                    :CISPR "B" QP
Test Loaded                   :2008/12/08 at 13:56

Completion                    :100% 2008/12/08 at 13:58

Report printed at

Software level

Test specification file Test Sequence file

Spectrum Analyser definition Transducer Correction

Source table file(s)

:1075262254

:CONDUCTED EMISSIONS9_45.DCF :CONFIGS\CON_COM.DCF
:INSTRUMENTS\SPECANL\HP8568B_8.DCF :FACTORS\CONDUCTEDD.DCF
: C:\PROFILA\FACTORS\CEFAC.TXT
C:\PROFILA\FACTORS\COND CABLE FACTOR.TXT
Test Receiver definition      :INSTRUMENTS\RX\ESH3_4.DCF
Transducer Correction         :FACTORS\CONDUCTEDD.DCF
Source table file(s)          : C:\PROFILA\FACTORS\CEFAC.TXT
C:\PROFILA\FACTORS\COND CABLE FACTOR.TXT

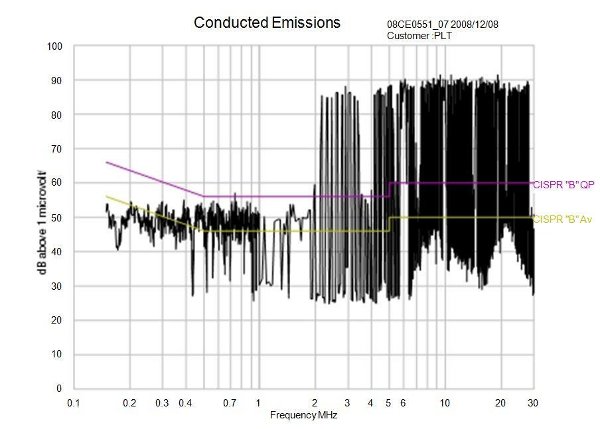

Plot is filed as C:\PROFILA\RESULTS\PLT\08CE0551_07.WMF

SIGNIFICANT PEAKS

Amplitude  relative to limit

Frequency   Absolute    Amplitude   Test limit   Detector

2.14685MHz   87.59dB    41.59dB     CISPR "B" Av  Average

2.89130MHz   88.23dB    42.23dB     CISPR "B" Av  Average

4.94900MHz   89.50dB    43.50dB     CISPR "B" Av  Average

6.81330MHz   89.39dB    39.39dB     CISPR "B" Av  Average

9.40115MHz   92.28dB    42.28dB     CISPR "B" Av  Average

13.0037MHz   90.37dB    40.37dB     CISPR "B" Av  Average

19.2840MHz   90.38dB    40.38dB     CISPR "B" Av  Average

27.7828MHz   90.68dB    40.68dB     CISPR "B" Av  Average

Advent CISPR 1

Test Number   :08
Customer      :PLT
Details of Equipment under test

SYSTEM UNIT :    ADVENT PLT ADE-200KIT  SN 744009205
Mfg         :    LINE

Test Limit                    :CISPR "B" QP

Test Loaded                   :2008/12/08 at 13:56

Completion                    :100% 2008/12/08 at 14:03

Report printed at

Software level

Test specification file Test Sequence file

Spectrum Analyser definition Transducer Correction

Source table file(s)

:2008/12/08 at 14:04

:1075262254

:CONDUCTED EMISSIONS9_45.DCF :CONFIGS\CON_COM.DCF
:INSTRUMENTS\SPECANL\HP8568B_8.DCF :FACTORS\CONDUCTEDD.DCF
: C:\PROFILA\FACTORS\CEFAC.TXT
C:\PROFILA\FACTORS\COND CABLE FACTOR.TXT
Test Receiver definition      :INSTRUMENTS\RX\ESH3_4.DCF
Transducer Correction         :FACTORS\CONDUCTEDD.DCF
Source table file(s)          : C:\PROFILA\FACTORS\CEFAC.TXT
C:\PROFILA\FACTORS\COND CABLE FACTOR.TXT

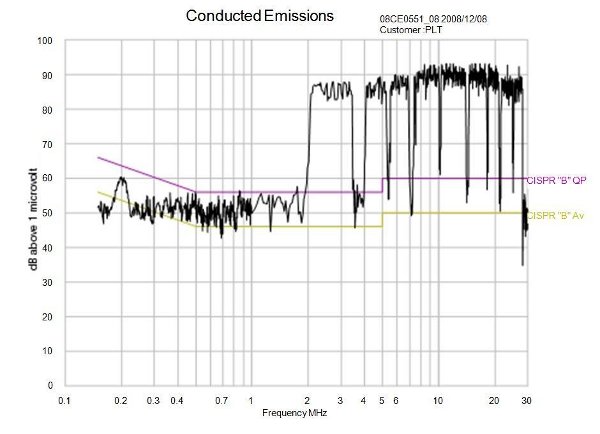

Plot is filed as C:\PROFILA\RESULTS\PLT\08CE0551_08.WMF

SIGNIFICANT PEAKS


Amplitude  relative to limit

Frequency    Absolute    Amplitude   Test limit   Detector

2.33945MHz   91.51dB     35.51dB     CISPR "B" QP Quasi Peak

3.32250MHz   92.45dB     36.45dB     CISPR "B" QP Quasi Peak

4.87955MHz   92.80dB     36.80dB     CISPR "B" QP Quasi Peak

6.83315MHz   92.89dB     32.89dB     CISPR "B" QP Quasi Peak

9.49065MHz   90.98dB     30.98dB     CISPR "B" QP Quasi Peak

13.3619MHz   90.58dB     30.58dB     CISPR "B" QP Quasi Peak

18.6799MHz   90.07dB     30.07dB     CISPR "B" QP Quasi Peak

26.9110MHz   89.17dB     29.17dB     CISPR "B" QP Quasi Peak

Advent CISPR 2

The above results are damning. With a peak at 43.5dB this equates to one device emitting the same level of interference as 22,387 barely legal devices.
